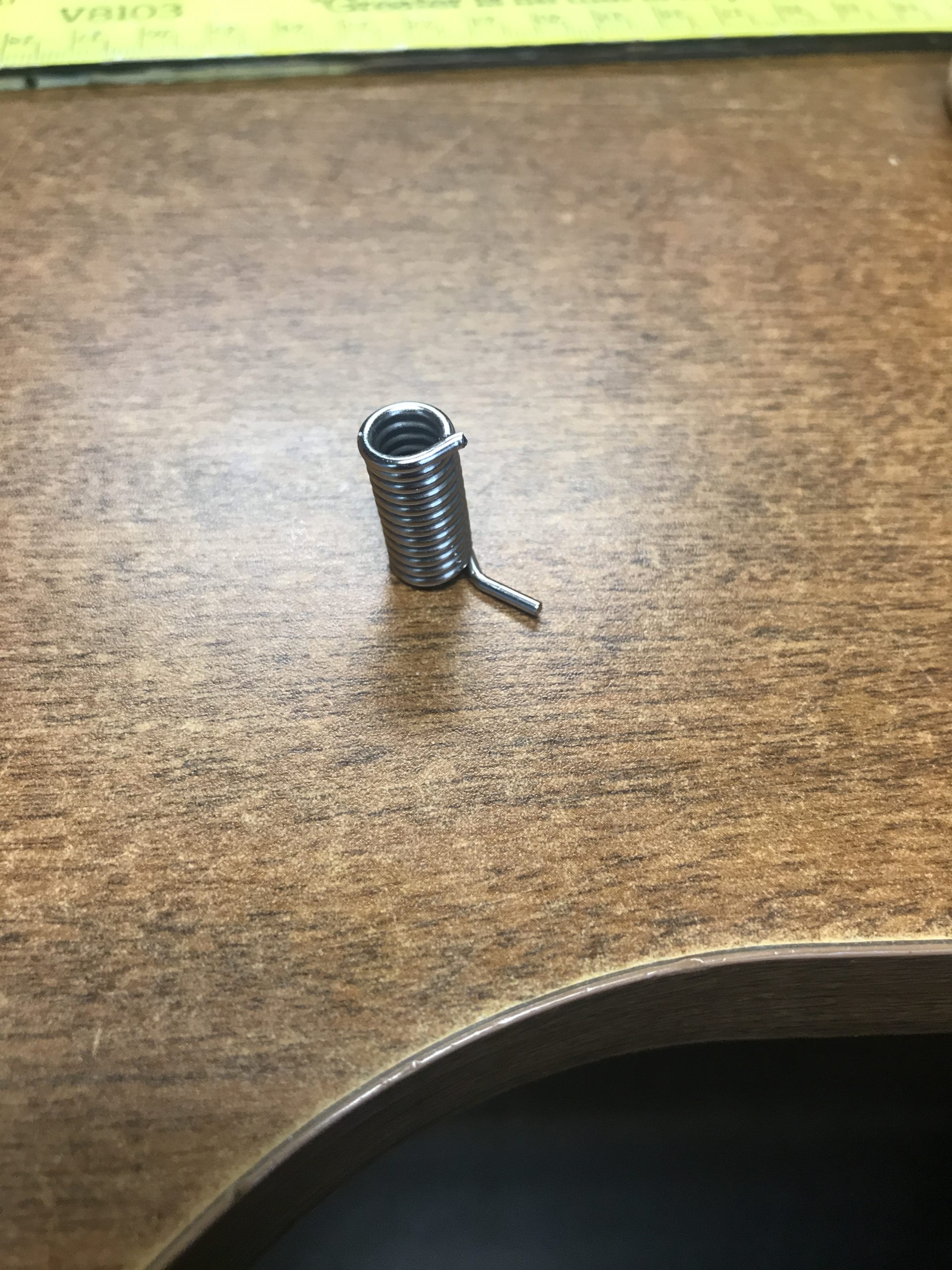

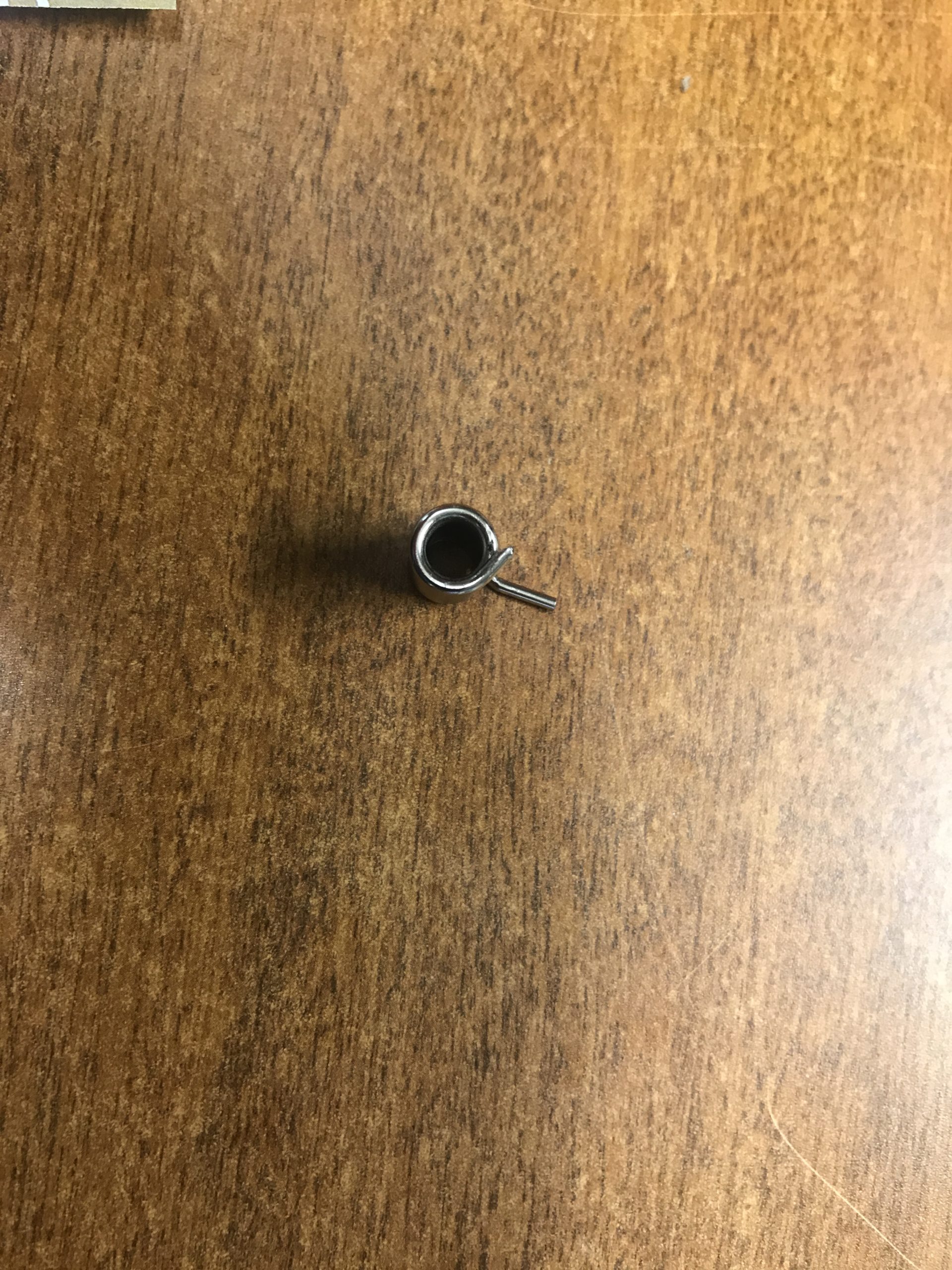

Torsion Spring needed
-
-
- .2349606 id
- .31496061 od
- .03937008 wire diameter
- .7480315 length
- .5905512 – leg length
- 12 coils
-
270° deflection angel – 9535K41
Click on picture to enlarge it.

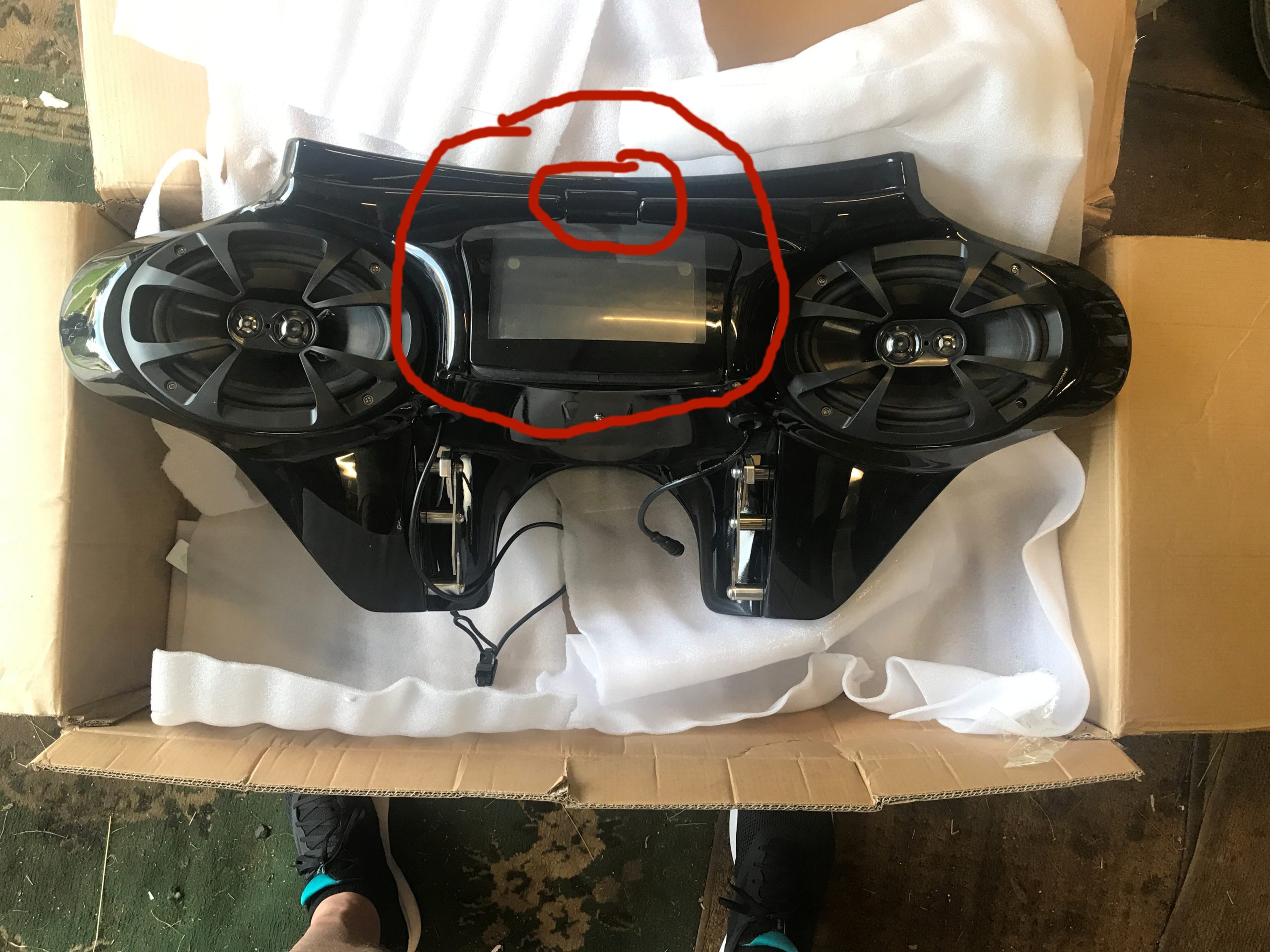

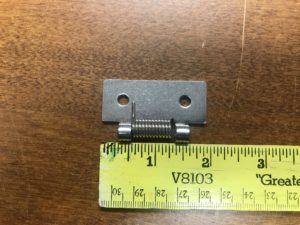

The spring is part of a hinge that holds the door (as seen below) open. I circled the entire door and also circled the top where it is hinged.
